PRODUCTS � Preformed LINE

Distribution � Ties Preformed side tie for galvanized steel wires and cables (for rural networks)

Preformed side tie for galvanized steel wires and cables  (for rural networks)

GENERAL INFORMATION

The side tie (LPL/C,F,K) is applied on the clamping of the galvanized steel cable or wire on the “neck” of the pin insulator. Made from galvanized steel wires. An abrasive material applied on itys inner side improves the gripping on the cable. It is supplied with an elastomer cushion that should be applied on the conductor.

ADVANTAGES

• Economical;
• Replaces the lashing made manually with wire and steel tape.

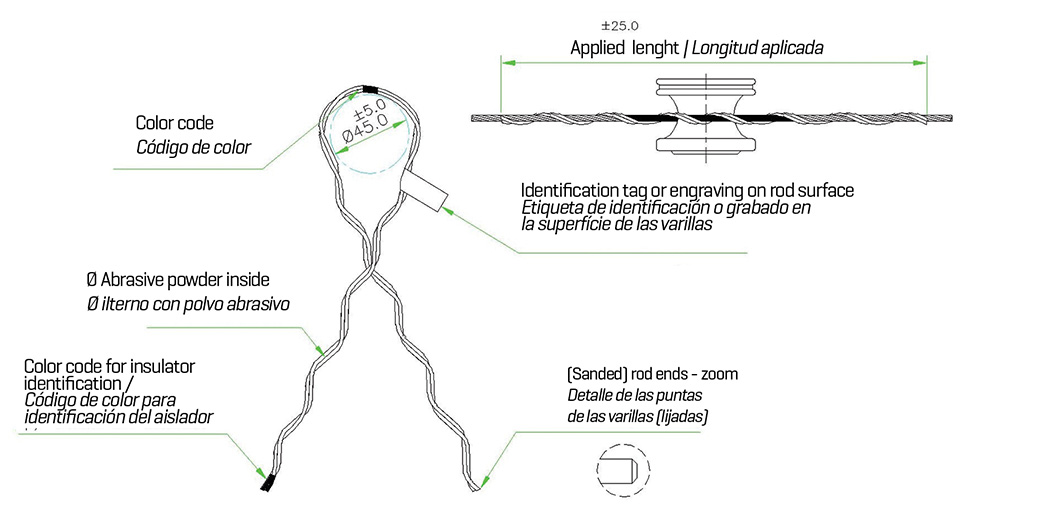

DIMENSIONS

Preformed side tie for galvanized steel wires and cables  (for rural networks)

PRODUCTS

ISOLATOR: ø57/60 - 15kv

Code Galvanized Steel Cable Lenght (±25mm) Color Code
ø mm ø pol Nº of Wires
LPLC120 3,09 - 1 - Red
LPLC121 4,87 - 3X2,25 - Black

ISOLATOR: ø75/80 - 25kv

Code Galvanized Steel Cable Lenght (±25mm) Color Code
ø mm ø pol Nº of Wires
LPLF120 3,09 - 1 - Red
LPLF121 4,87 - 3X2,25 - Black

ISOLATOR: ø102 - 35kv

Code Galvanized Steel Cable Lenght (±25mm) Color Code
ø mm ø pol Nº of Wires
LPLK120 3,09 - 1 - Red
LPLK121 4,87 - 3X2,25 - Black
